Linear Heat Sealer F1000 Horizontal | Left to Right, Date Printing
Linear Heat Sealer F1000 Horizontal | Left to Right, Date Printing
Equipped with PID digital temperature controller, for bag materials that re-quire very precise sealing parameters. Sealer with hot ink date printer. Sealing from left to right.
Description:
F1000 Universal Sealer (Left-to-Right Edition)

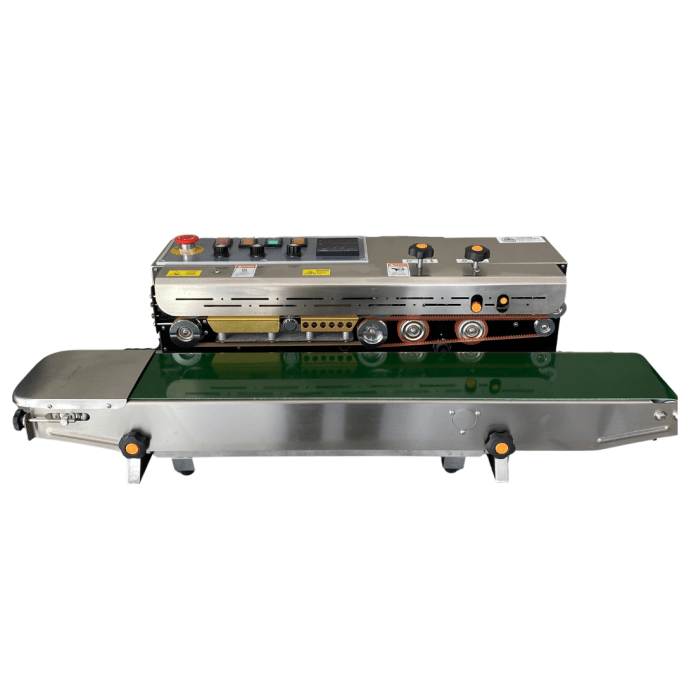

The F1000 Continuous Band Sealer is a heavy-duty stainless steel workstation specifically configured for production lines requiring a left-to-right workflow. This Universal version offers a dual-orientation system, allowing you to switch between horizontal and vertical operation in minutes, making it the perfect choice for diverse packaging needs.
Precision Batch & Date Coding

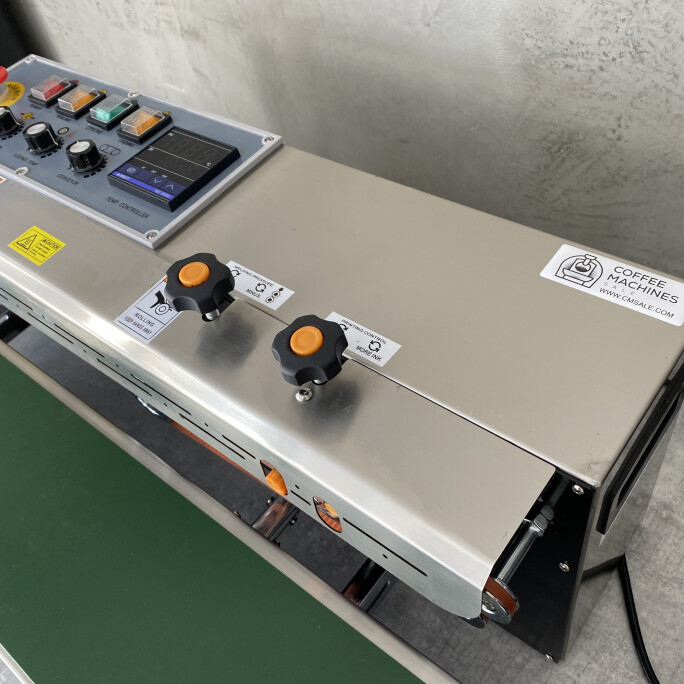

The F1000 features a built-in hot ink printer capable of printing up to 2 independent lines of text. With a maximum of 19 characters per line, you can easily include essential production data:
Line 2: ROAST DATE 12/12/25
Industrial Reliability
- Directional Efficiency: Specifically engineered for integration into lines where the belt moves to the right.

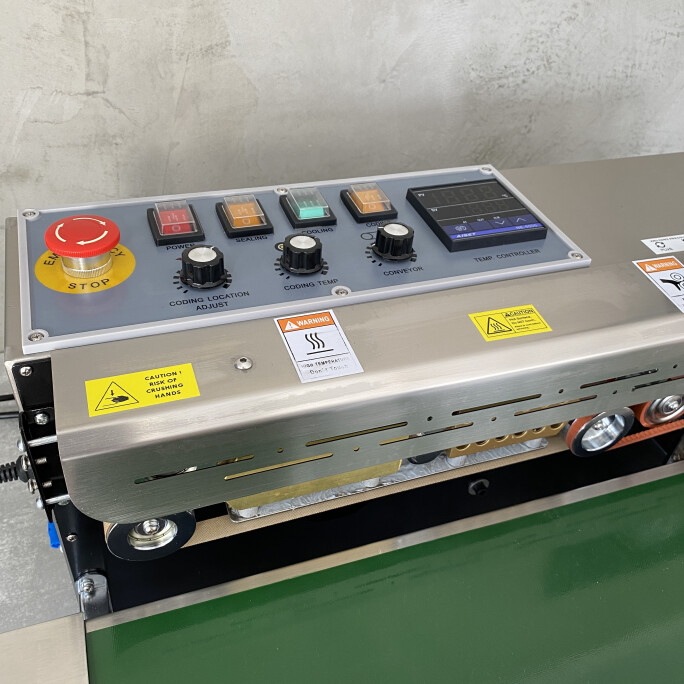

- Digital PID Control: Precise temperature management for materials requiring exact sealing parameters.
- Professional Seals: Creates 12mm wide, airtight seals comparable to high-speed automatic systems.
- Multi-Material Capacity: Seals PE, PP, Mylar (BoPET), and heat-sealable laminations or cellulose.
- Non-Stick PTFE Belts: Premium woven guide belts ensure smooth, continuous bag transit.
Technical Specifications
| Operation Direction | Left to Right (Belt moves to the right) |
| Sealing Speed | 0 – 12 m/min (adjustable) |
| Seal Width | 6 – 12 mm (12mm wide seal included) |
| Temperature Range | 0 – 300°C (Digital Control) |
| Printing Capacity | Max. 2 lines / 19 characters each |
| Power / Voltage | 770 W | 110/220 V |
| Weight / Material | 25 kg | Stainless Steel |
Frequently Asked Questions
Which way does the conveyor move on this model?
On this specific F1000 configuration, the belt moves from left to right. This is ideal for production lines whose layout requires the belt to move to the right.
Is the vertical conversion kit included?
Yes. This is the Universal version of the F1000, meaning it comes with all necessary parts to operate in both horizontal and vertical positions.
Equipped with Left-to-Right conveyor rotation. Durable stainless steel design for professional industrial use.
