Linear Heat Sealer F1000 Universal | Horizontal/Vertical, Date Printing
Linear Heat Sealer F1000 Universal | Horizontal/Vertical, Date Printing
Equipped with PID digital temperature controller, for bag materials that re-quire very precise sealing parameters. Sealer with hot ink data printer.
Description:
Universal Industrial Sealing Solution

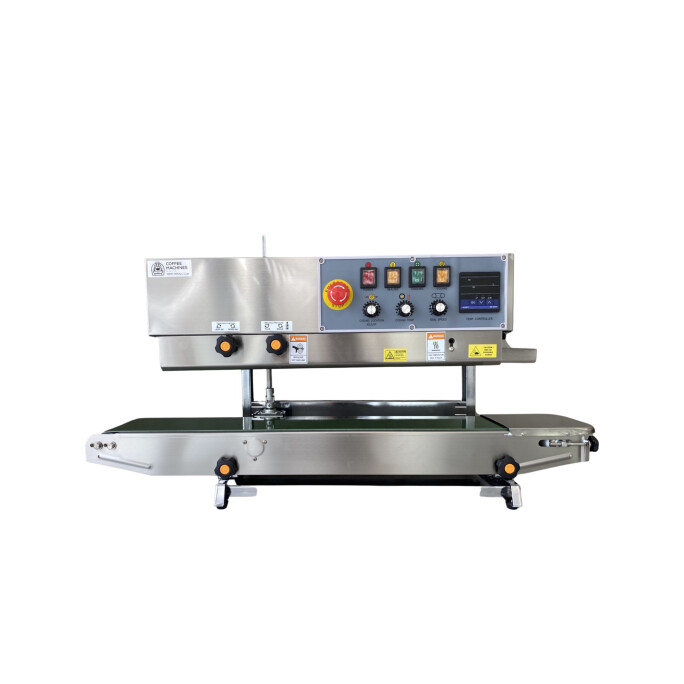

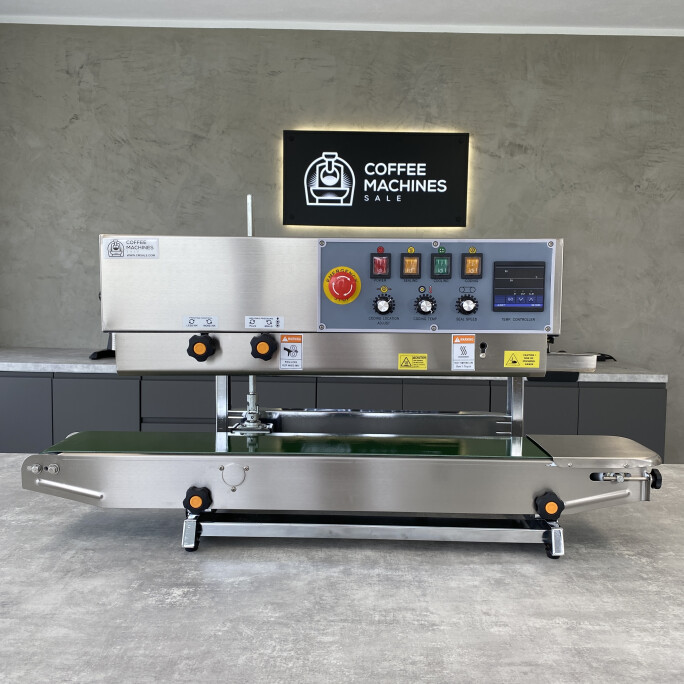

The F1000 Continuous Band Sealer is a heavy-duty stainless steel workstation designed for high-volume packaging environments. Whether you are sealing coffee bags, stand-up pouches (Doypacks), or heat-sealable laminations, the F1000 delivers professional-looking, airtight results. This Universal version offers a dual-orientation system, allowing you to switch between horizontal and vertical operation in minutes.
Engineered for Efficiency
- Integrated Hot Ink Coder: Print expiration dates and lot numbers directly on the seal line during the process.
- High-Speed Conveyor: Capable of sealing up to 12 meters per minute, matching the output of high-speed automatic systems.
- Multi-Material Suitability: Perfect for Polyethylene (PE), Polypropylene (PP), BoPET (Mylar), and heat-sealable cellulose (Cellophane).
- Non-Stick Reliability: Equipped with premium woven PTFE-type guide belts for smooth, jam-free operation.
Technical Specifications
| Sealing Speed | 0 – 12 m/min (adjustable) |
| Seal Characteristics | 6 – 12 mm width | 12mm wide seal included |
| Temperature Range | 0 – 300°C (Digital PID Control) |
| Conveyor Load | Max. 3 kg loading weight |
| Power / Voltage | 770 W | 110/220 V |
| Material Thickness | Max. single layer < 0.08 mm |
| Weight / Material | 25 kg | Stainless Steel Construction |
Frequently Asked Questions
What is the difference between the F1000 and the F900 model?
The primary difference is the printing capability. The F1000 is equipped with a Hot Ink Data Printer module for coding dates and batch numbers on the bag. The F900 model does not have a printing module.
What does "Universal Version" mean?
The Universal version includes a conversion kit that allows the machine to be used in both horizontal and vertical positions. This is ideal if you switch between flat bags and vertical pouches (like stand-up coffee bags).
Can I seal heavy coffee bags with this machine?
Yes. With a 12mm wide seal and a conveyor weight capacity of up to 3kg, it is perfectly suited for retail coffee bags up to 1kg or 2.5kg.
Universal orientation kits included. Durable stainless steel design for long-term industrial use.
