ReiCatino® 100
ReiCatino® 100
Experience the magic of odorless coffee roasting with ReiCatino® 100 - your eco-friendly solution to a cleaner, fresher roasting environment
Introducing the ReiCatino® 100, a revolutionary solution for shop roasters seeking eco-friendly and energy-efficient air purification. This product is designed to neutralize smoke plumes and odours that are produced during the coffee roasting process, ensuring a pleasant environment for both workers and customers.

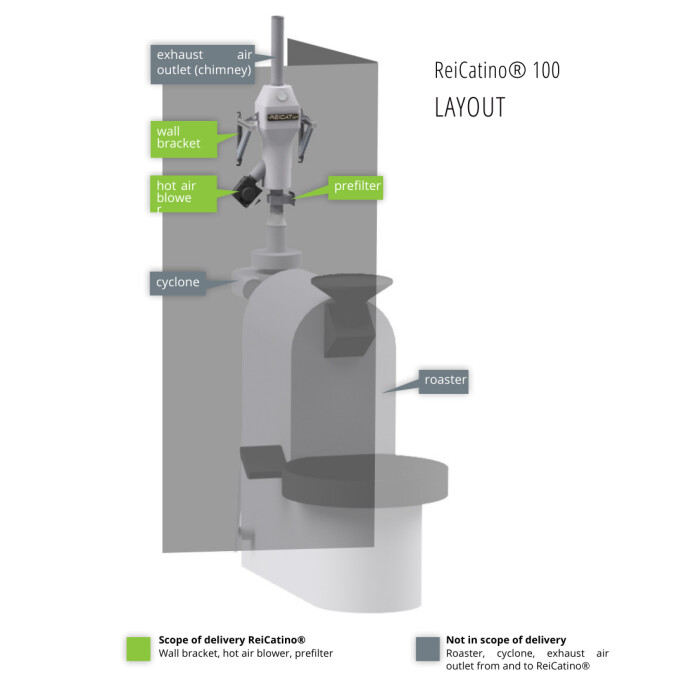

The ReiCatino® 100 is a versatile system that can be integrated into any roasting system, regardless of the brand. It operates electrically and uses a catalyst to convert smoke plumes and odours into clean and odourless air. This product is perfect for drum roasters with an exhaust air volume of up to approximately 100 Nm³/h and up to approximately 5 kg/batch.
Key features of the ReiCatino® 100 include:
- Catalyst chamber dimensions: 440 x 610 x 950 mm
- Prefilter: Filters coffee chaffs out of the air which the cyclone does not capture

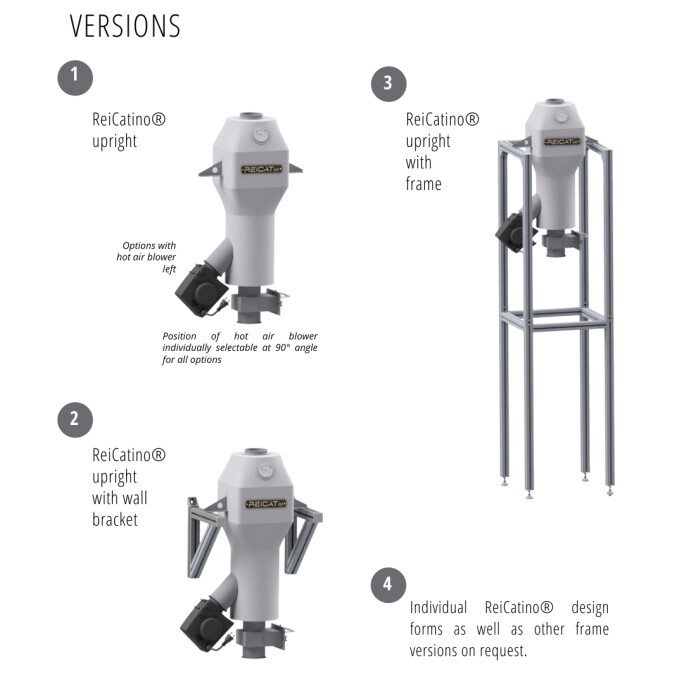

- Mounting: Frame and wall bracket options available for flexible mounting
- Design colour: Silver
- Waste air amount: up to max. 100 Nm3/h
- Max. blower capacity: 5,4 kW
- Flange Inlet/outlet (beaded rim): NW 100 / 100
- Power supply: 230 V
- Temperature display: up to 400° C
- Material: Stainless steel
- Installation: only suitable for indoor installation
- Weight: 30 kg (package on pallet)
