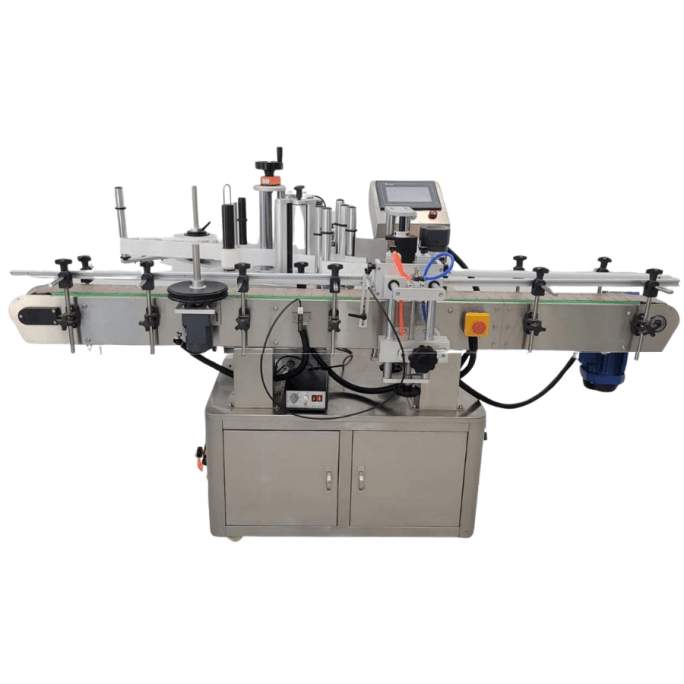

Full Automatic Labeling Machine for Cans LTCMS-260

Description:

The LTCMS-260 is a high-performance automatic labeling machine for cans, jars, and bottles. Designed for efficiency and accuracy, it ensures consistent labeling at speeds up to 40 units per minute, making it an excellent choice for roasteries, beverage producers, and food packaging facilities.

With precise horizontal accuracy of ±1 mm and compatibility with a wide range of container sizes, the LTCMS-260 delivers professional results that save time and reduce labor costs.

Key Features

• High labeling speed: 20–40 pcs/min (depending on container size)

• Superior accuracy: ±1 mm horizontally

• Wide compatibility: bottle/can diameters Ø30–100 mm, labels L 15–350 mm × H 15–150 mm

• Large roll capacity: Ø76 mm inner diameter, Ø350 mm outer diameter

• Compact and durable: machine size 2000 × 1400 × 1300 mm, net weight 226 kg

• Efficient operation: 220V, 1500W system

Technical Specifications

• Model: LTCMS-260

• Power supply: AC 220V, 50/60 Hz, 1500W

• Labeling capacity: 20–40 pcs/min

• Labeling accuracy: ±1 mm (horizontal)

• Container diameter: Ø30–100 mm

• Label size: L 15–350 mm, H 15–150 mm

• Roll inside diameter: Ø76 mm

• Roll outside diameter: Ø350 mm

• Conveyor size: 1950 × 100 mm

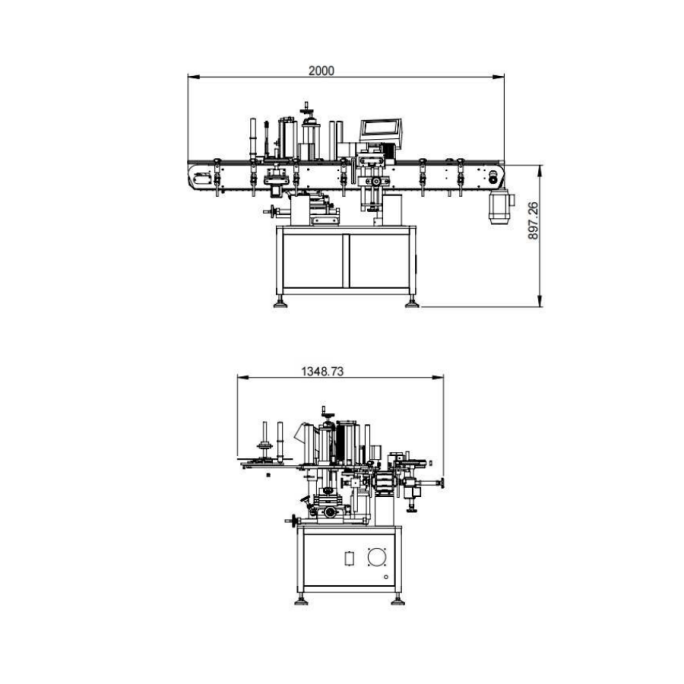

• Machine size: approx. 2000 × 1400 × 1300 mm

• Packing size: approx. 2120 × 940 × 1500 mm

• Net/Gross weight: 226 kg / 290 kg

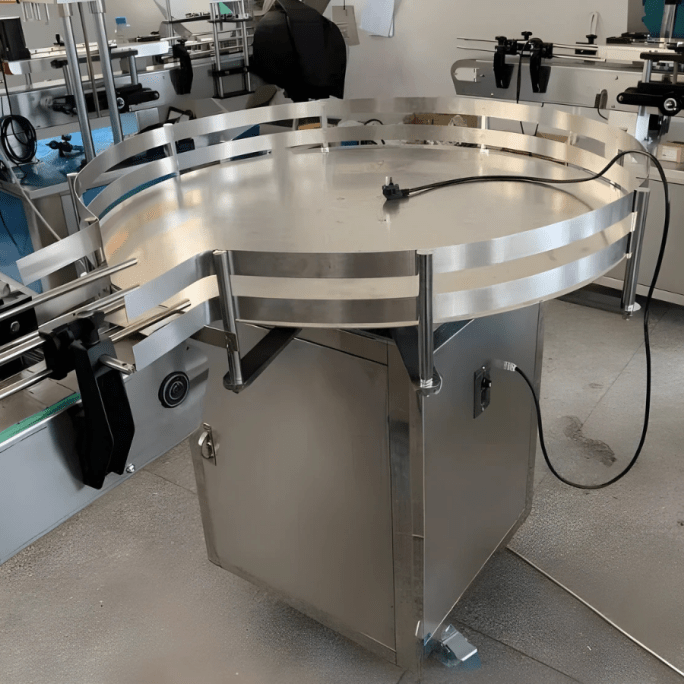

Add-On: Bottle Collecting Turntable – LTCMS-1000

For complete automation, the LTCMS-1000 collecting turntable can be integrated with the labeling line. It efficiently collects and organizes finished cans or bottles after labeling.

Specifications:

• Model: LTCMS-1000

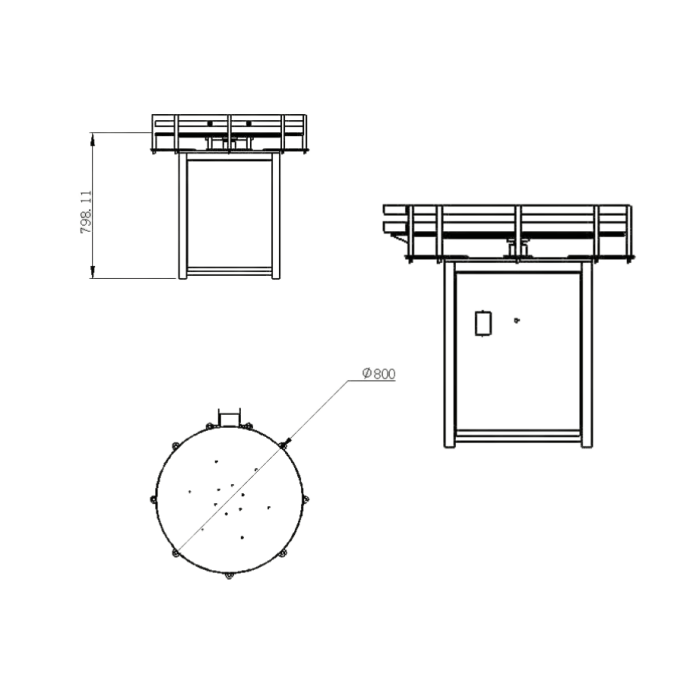

• Turntable diameter: 1000 mm

• Suitable bottle diameter: 20–100 mm

• Suitable bottle height: 30–320 mm

• Working speed: 40–60 bottles/min

• Power supply: 220V/110V, 50–60 Hz, 800W

• Package size: 1350 × 1315 × 1235 mm

• Net/Gross weight: 135 kg / 180 kg
