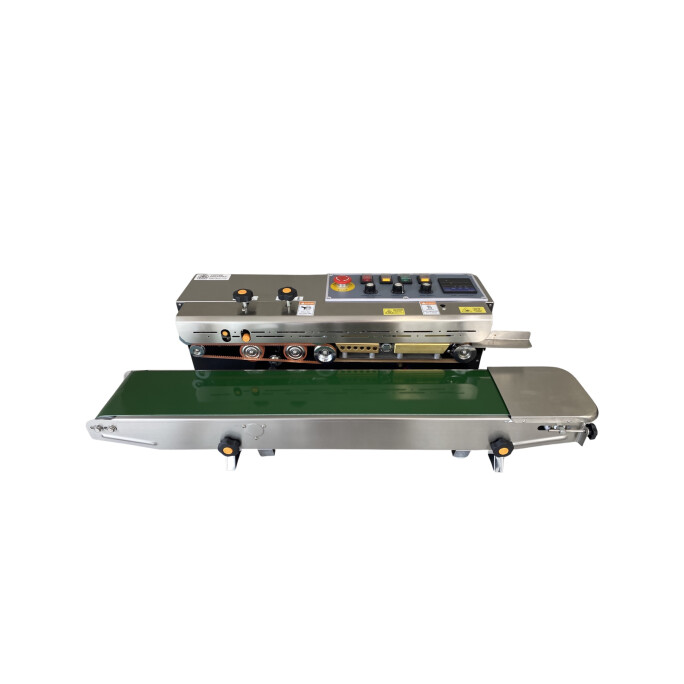

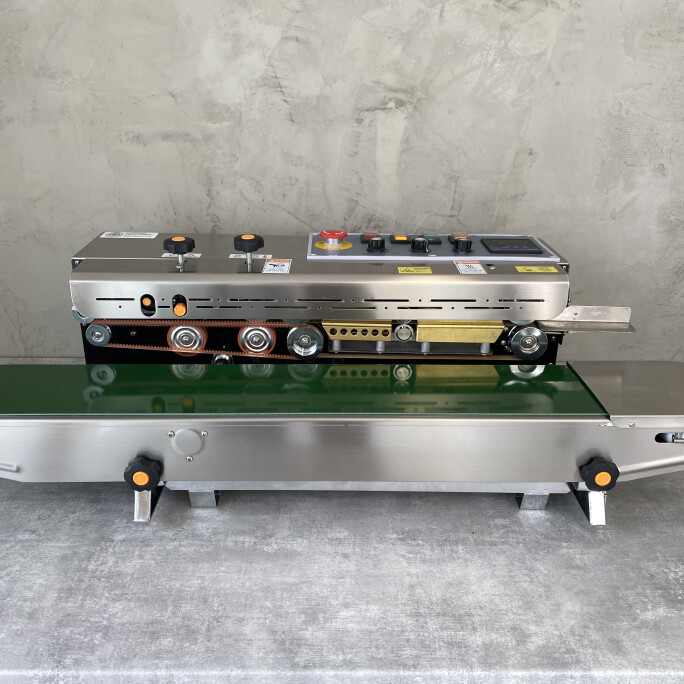

Linear Heat Sealer F1000 Horizontal | Date Printing
Linear Heat Sealer F1000 Horizontal | Date Printing
Equipped with PID digital temperature controller, for bag materials that re-quire very precise sealing parameters. Sealer with hot ink data printer.
Description:
Universal Industrial Sealing & Coding Solution
The F1000 Continuous Band Sealer is a heavy-duty stainless steel workstation designed for high-volume packaging environments. This Universal version offers a dual-orientation system, allowing you to switch between horizontal and vertical operation in minutes. It is the perfect solution for roasteries needing professional, airtight seals combined with integrated production data.
Professional Batch & Date Coding

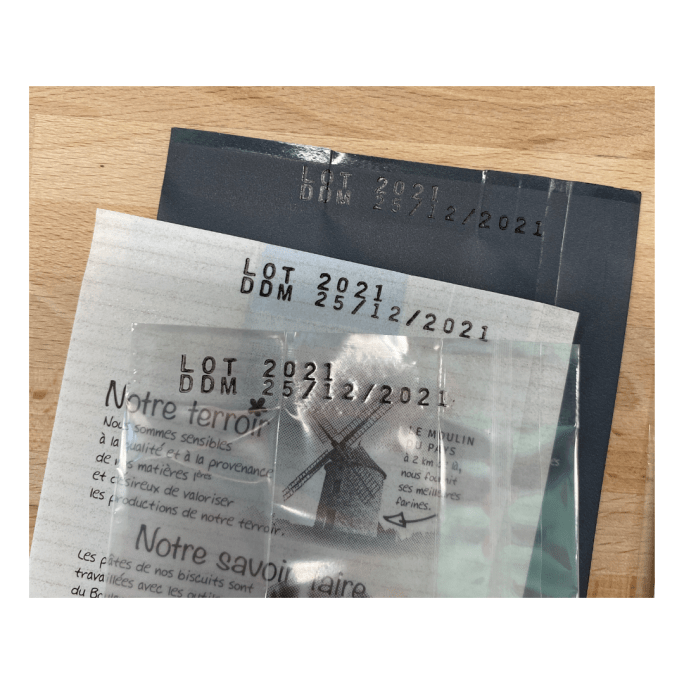

The F1000 features a built-in hot ink printer capable of printing up to 2 independent lines of text. Each line supports a maximum of 19 characters (including spaces), allowing for comprehensive labeling:
Line 2: ROAST DATE 12/12/25
Engineered for Efficiency
- Standard Workflow: The conveyor belt operates in a right-to-left direction, following standard industrial packaging ergonomics.

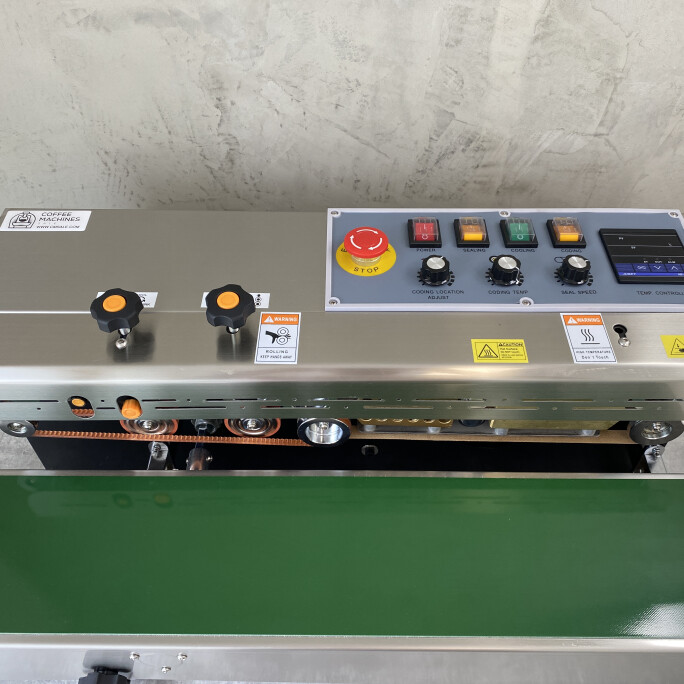

- Digital PID Control: Precise temperature management for bag materials requiring exact sealing parameters.
- High-Speed Conveyor: Capable of speeds up to 12 meters per minute to match high-speed production flows.
- Multi-Material Suitability: Seals PE, PP, Mylar (BoPET), and heat-sealable laminations or cellulose.

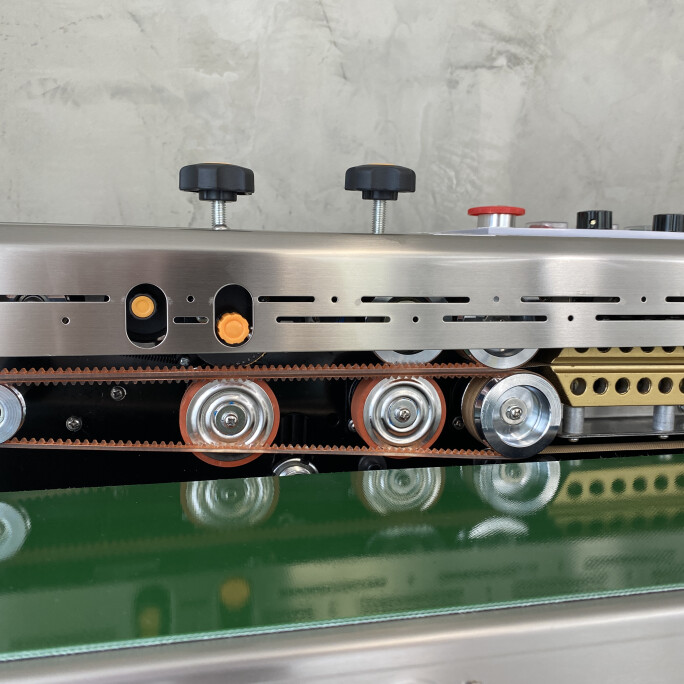

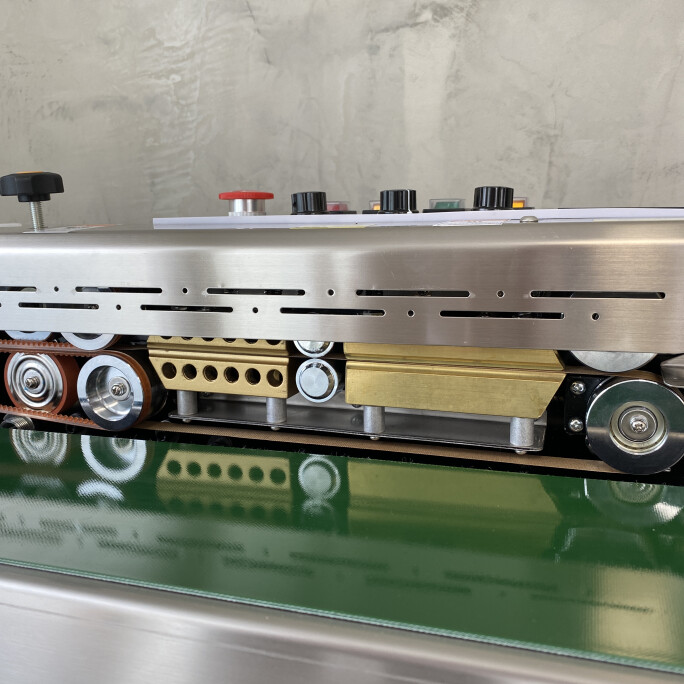

- Non-Stick Reliability: Premium woven PTFE-type guide belts ensure smooth, continuous operation.
Technical Specifications
| Operation Direction | Right to Left |
| Sealing Speed | 0 – 12 m/min (adjustable) |
| Seal Width | 6 – 12 mm (12mm wide seal included) |
| Temperature Range | 0 – 300°C (Digital PID Control) |
| Printing Capacity | Max. 2 lines / 19 characters per line |
| Power / Voltage | 770 W | 110/220 V |
| Weight / Material | 25 kg | Stainless Steel Construction |
Frequently Asked Questions
In which direction does the conveyor belt move?
The conveyor belt on the F1000 moves from right to left. This is the standard configuration for this industrial model.
What is the difference between the F1000 and the F900 model?
The F1000 is equipped with the Hot Ink Data Printer module, allowing for 2-line coding. The F900 model provides the same sealing quality but lacks the printing capability.
Does it handle stand-up coffee pouches?
Absolutely. Using the included vertical conversion kit, the F1000 is perfectly suited for Doypacks and gusseted coffee bags.
Universal orientation kits included. Durable stainless steel design for long-term industrial use.
