Coffee Bags Labelling Applicator LA420 Pro
Coffee Bags Labelling Applicator LA420 Pro
This versatile device ensures precise application of labels to a wide range of pre-made coffee bags, including those with zippers or valves, making it a perfect choice for roasteries and packaging facilities.
Description:
Consistent labelling of pre-made coffee bags

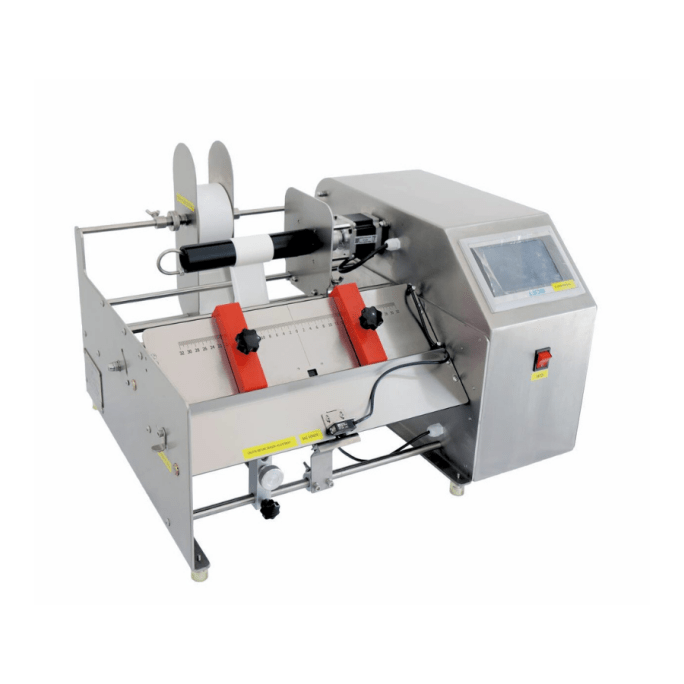

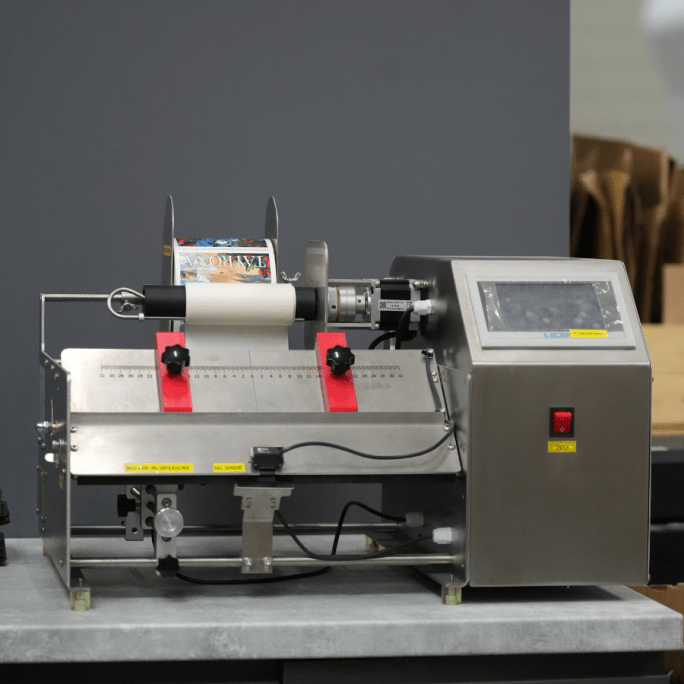

The LA420 Pro Coffee Bag Label Applicator is a desktop machine for applying labels to pre-made coffee bags. Adjustable guides help position bags consistently, including suitable formats with a zipper or a one-way degassing valve.
Place the label on a suitable, reasonably flat area of the bag. It should not cover the valve or interfere with the zipper. The LA420 Pro is not compatible with transparent bags.
Check your bags and labels before ordering
The LA420 Pro requires non-transparent bags. For bags with a prominent valve, zipper or uneven surface, check the intended label position on a sample before production.
Designed for roastery packaging

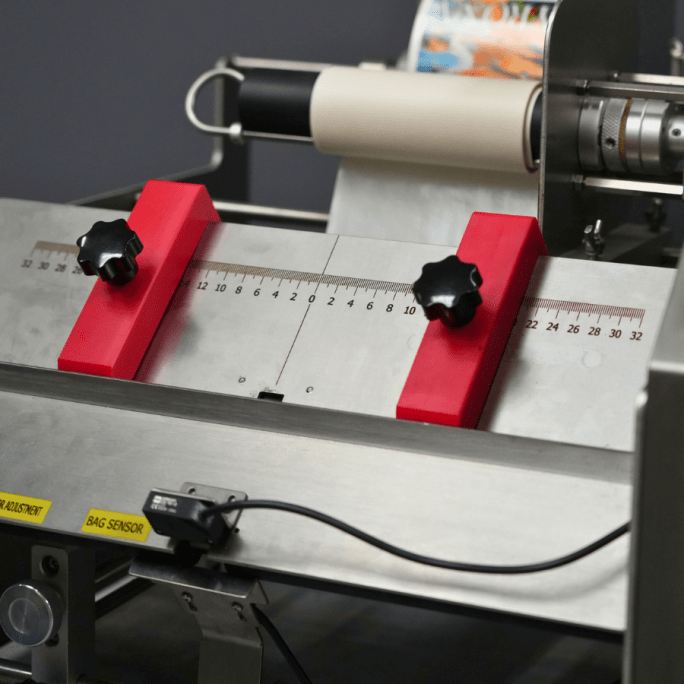

Adjustable bag guides
Set the guides to the bag format and check label alignment with a test bag before starting production.
Defined label roll specifications
Use labels 30–180 mm wide and at least 20 mm high, with 3–5 mm spacing on a roll with a Ø76 mm inner core.
Label roll orientation and distance from the bag edge
The label roll must have a Ø76 mm inner core in both configurations. Choose the winding orientation according to the distance between the applied label and the bottom edge of the bag:
- Standard winding: Use when the bottom edge of the applied label is at least 20 mm from the bottom edge of the bag.
- Reverse winding: Required when the bottom edge of the applied label needs to be less than 20 mm from the bottom edge of the bag. Order the labels with the artwork in the opposite orientation on the roll.
Confirm the winding orientation before ordering pre-printed label rolls.
Technical Specifications
| Compatible bags | Non-transparent pre-made bags, including suitable zipper and valve formats |
| Not compatible with | Transparent bags |
| Maximum bag width | 300 mm |
| Bag height | No specified limit |
| Label placement accuracy | Approximately ±1.0 mm |
| Label width | 30–180 mm |
| Minimum label height | 20 mm |
| Gap between labels on the roll | 3–5 mm |
| Label roll inner core diameter | Ø76 mm — required for both winding orientations |
| Maximum roll outer diameter | Ø250 mm |
| Standard winding | Label at least 20 mm from the bottom edge of the bag |
| Reverse winding | Required when the label is less than 20 mm from the bottom edge of the bag |
| Power supply | AC 220 V, 50–60 Hz |
| Power | 500 W |
| Weight | 32 kg |
| Machine dimensions | 620 × 490 × 430 mm |
Frequently Asked Questions
Can it label bags with a degassing valve?
Yes, it can handle suitable bags with a valve. Apply the label to an appropriate area without covering the valve. Test unusual bag constructions before production.
Which label roll orientation do I need?
Use standard winding if the applied label will be at least 20 mm from the bottom edge of the bag. If it needs to be closer than 20 mm, order a reverse-wound roll. Both versions require a Ø76 mm inner core.
What are the label roll requirements?
Labels must be 30–180 mm wide and at least 20 mm high, with a 3–5 mm gap between labels. The roll needs a Ø76 mm inner core and must not exceed Ø250 mm in outer diameter.
How do I change to another bag size?
Adjust the bag guides and label position, then run a sample bag to check alignment before continuing.
