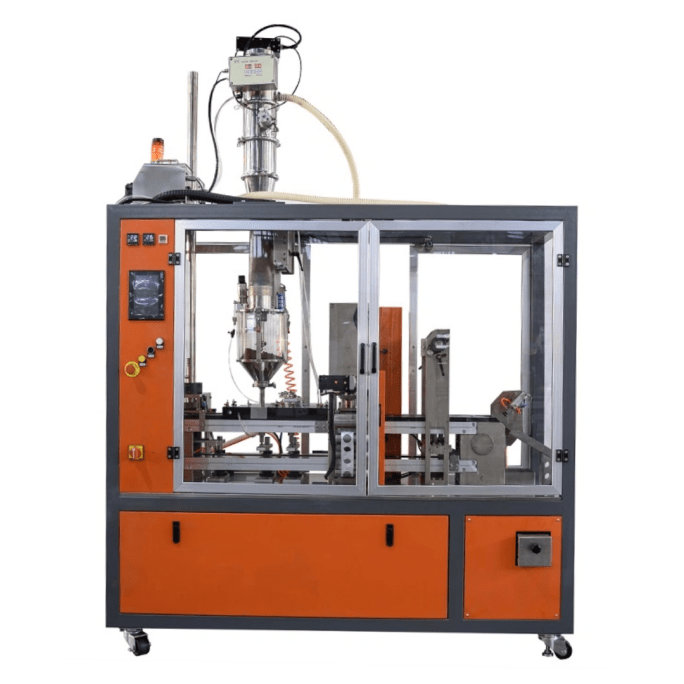

Coffee Capsule Filling&Sealing Machine CFS-1

Coffee Capsule Filling&Sealing Machine CFS-1

The perfect solution for your coffee capsule production needs - 50 capsules per minute!

€40000 net
(Price does not include VAT)
Available on backorder
-
+

Description:

Introducing the Automatic Coffee Capsule Filling&Sealing Machine - the perfect solution for your coffee capsule production needs!

This CFS-1 single lane machine can be suitable for Nespresso, Lavazza Blue/Point, Dolce Gusto and KCup coffee capsules.

This cutting-edge machine is designed to automatically complete all production processes, making it incredibly easy to operate. With a small volume and a user-friendly interface, this machine is perfect for coffee production companies of all sizes.

Equipped with a Schneider PLC controller and a touchscreen display, the machine provides real-time monitoring and process visualization for all operations. Depending on the capsules being stackable or not, the machine comes with a stack channel for manual loading or an automatic capsule feeding system for added convenience.

With a vacuum feeding machine, screw feeding machine, elevator machine, and various conveyor methods, the Automatic Coffee Capsule Filling Machine ensures the automatic feeding of materials in a simple and efficient manner.

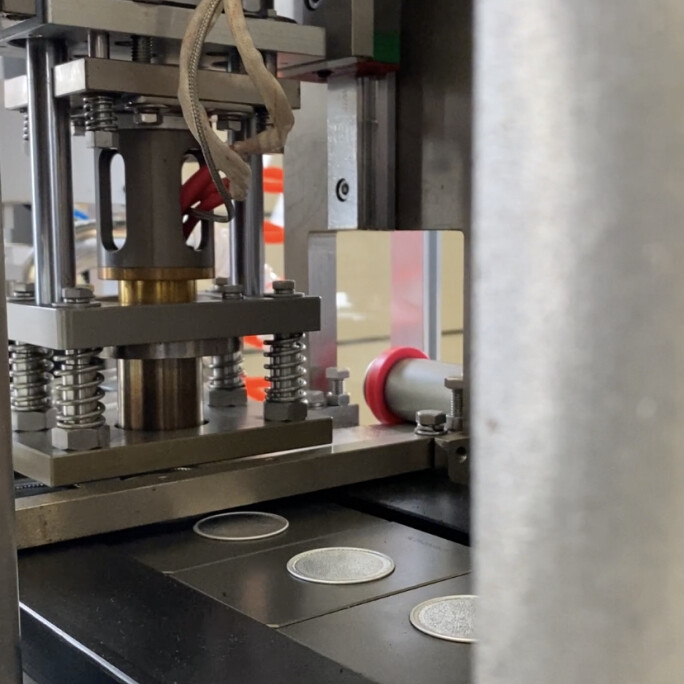

This machine also features an automatic powder pressing mechanism, ensuring that the coffee is perfectly packed and sealed every time. The cutting and sealing lids are also done in a single step, with lids from rolls or magazines.

The Automatic Coffee Capsule Filling Machine also comes with a nitrogen flush function, which creates a flow process with a revised nitrogen atmosphere and 2% residual oxygen content. This helps prolong the product's shelf life, ensuring that your coffee stays fresh for longer.

The entire machine frame is made of 304 stainless steel material, ensuring high hardness and compliance with food hygiene license regulations.



Technical details:

Certification CE, FDA, CSA, ISO9001
Product Ground coffee
Sealing  Rolled Cutting Aluminum Foil
System Throughput up to 50 cups per minute

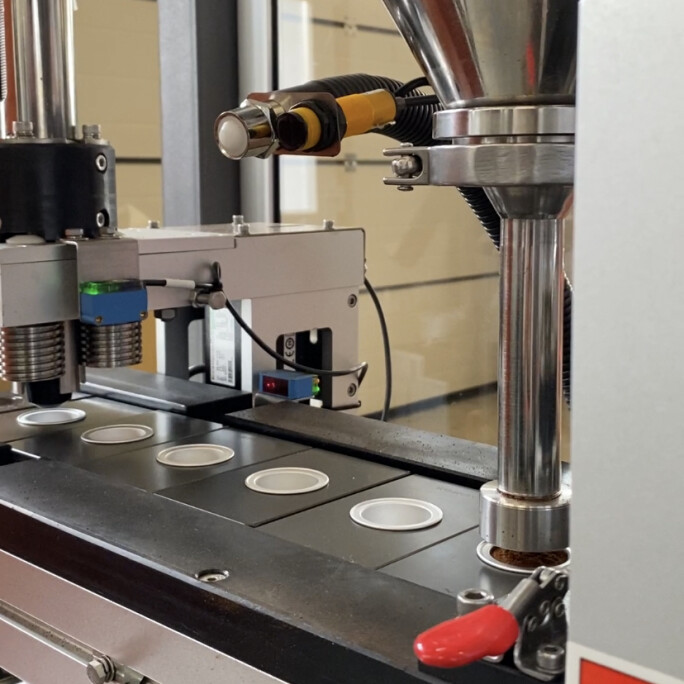

Coffee Feeding Servo driven auger filler
Filling Weight 0-20g (option)
Dosage Tolerance ±0.15g
Power 220V 1P / 380V 3P 50/60HZ 2.5KW
Air Supply Pressure 0.6Mpa-0.8Mpa
Air Consumption 0.6mˆ3/minute
Weight 750Kg
Dimension 1900mm(L)*1118mm(W)*2524mm(H)
Noise Level ≤82db
